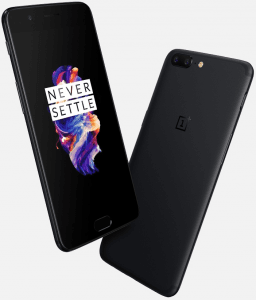

89 Important OnePlus 5 Specs

5.5
in
Display
2.45
Ghz
Processor
20-+16--
MP
Main Camera
16-
MP
Selfie Cam
Avg. rating:
(83%) (12 reviews over 2 sources)
Key Specs
Processing featuresocta-core 2.45GHz (maximum) Qualcomm Snapdragon 835 (RAM: 8GB LPDDR4X (6GB version also available))
Display details1920 x 1080 5.5-inch screen
ImagingMain/back: 20-megapixel telephoto + 16-megapixel wide-angle, Frontal (Selfies): 16-megapixel, Video: 3840 x 2160-pixel resolution (30 (with an option of 60fps for 1080p quality) frames per second)
Release dateJun 20, 2017

Camera Details
Camera Resolution20-megapixel telephoto + 16-megapixel wide-angle
Camera flashDual LED
Camera Options
  • Clear image
  • Dynamic denoise
  • HDR
  • HQ
  • panorama
  • Portrait
  • Pro mode
  • RAW image
  • Time-lapse
Camera Features
  • DCAF (on the wide-angle lens)
  • EIS
  • PDAF (on the telephoto lens)
  • Sony IMX 350 telephoto sensor
  • Sony IMX 398 wide-angle sensor
Camera Aperturef/1.7 (wide-angle), f/2.6 (telephoto)
Image FormatsJPEG, PNG, BMP, GIF
Camera pixel size1.12 (for the wide-angle lens, 1.0 for the telephoto lens) microns
Video recorder featuresSlow-motion video-recording at 720p and 120fps
Max Video Resolution3840 x 2160 px
Video frames per second30 (with an option of 60fps for 1080p quality)
SELFIE CAMERA
Selfie Cam Resolution16-megapixel
Pixel size1.0
Selfie OptionsFace beauty, HDR, Screen flash, Smile capture
Selfie FeaturesEIS, Sony IMX 371 sensor
Aperturef/2.0
Max front-cam Video Resolution1920 x 1080
Front-cam frames per second30
Display
Display size5.5 inches
Display dots per inch401 DPI
Display TypeOptic AMOLED
Color Mode16777216 colors
Display aspect ratio16:9
Multi-touch screenYes
Touch-ScreenCapacitive
Display Resolution1920 x 1080 px
Display's superficy12.93 square inches
Display's superficy (metric)328.42 square mm
Display finish2.5D Corning Gorilla Glass 5
Display total pixels2073600
Display featuressRGB and DCI-P3 support, Reading mode, Lift-up display, Ambient display, Night mode
Processing Power
Operating SystemOxygenOS (based on Android 7.0 Nougat)
ProcessorQualcomm Snapdragon 835
CPU Cores8
CPU architecture64-bit
Processor Speed2.45GHz (maximum)
RAM8GB LPDDR4X (6GB version also available)
Graphic Processor (GPU)Adreno 540
Physical Features
Weight (grams)153 g
Thickness (metric)7.25 mm
Width (metric)74.1 mm
Height (metric)154.2 mm
Ounces per cubic inchNAN oz/cu in
Grams per cubic cm0.18 g/cu cm
Headset Jack3.5mm
Available colors
  • Midnight Black
  • Slate Gray
Ambient light detector (RGB Ambient Light)
Connectivity
Base technology
  • CDMA EVDO BC0
  • GSM 850/900/1800/1900MHz
3G NetworksTD-SCDMA Bands 34/39, UMTS (WCDMA) Bands 1/2/4/5/8
4G NetworksFDD LTE Bands 1/2/3/4/5/7/8/12/17/18/19/20/25/26/28/29/30/66, TDD LTE Bands 38/39/40/41
Maximum data rate600Mbps (3CA/256QAM)
Maximum uplink data rate150Mbps (CA/64QAM)
SIM card typeNano SIM (dual)
Wi-Fi802.11a/b/g/n/ac (2.4G/5G), 2x2 MIMO
Head SAR value (radiation)1.36 w/Kg
Body SAR0.84 w/Kg
Bluetooth Technology5.0
Bluetooth Profiles SupportedAptX, AptX HD
NFCYes
USB class2.0
ConnectorsUSB Type-C
Memory
Memory128GB (64GB version also available)
Battery Life
Battery Power3300mAh
mAh per ounceINF mAh/oz
mAh per gram22 mAh/g
mAh per mm thick455 mAh/mm of thickness
mAh per display square in.255 mAh/sqr in.
Charging system5V 4A Dash Charge
Music / Multimedia
Audio file formatsMP3, AAC, AAC+, WMA, AMR-NB, AMR-WB, WAV, FLAC, APE, OGG, MID, M4A, IMY
Music featuresUSB audio and AANC support
Speakers1 (bottom-facing)
General Specs
Special features10nm processor
Sequel toOnePlus 3
Other features
SensorsHall, Accelerometer, Gyroscope, Proximity
Video Formats3GP, AVI, FLV, H.265 (HEVC), MKV, MOV, MP4, TS, WEBM, WMV
Link to user manualDownload manual
Special keysAlert slider
CompassElectronic
Location servicesBeiDou, GLONASS, GPS, Galileo
Noise cancellation systemYes
Silent or Vibrating alertsHaptic vibration motor, RGB LED notification light
Sound QualityDirac HD Sound, Dirac Power Sound
Number of microphones3
FCC ID2ABZ2-A5000
Fingerprint detectorYes
FinishAnodized aluminum unibody

Also known as OnePlus A5000.
